Skylark AAT Suite (Skylark Auto Antenna Tracker + Skylark Trace OSD)

[skylark]

Skylark AAT Suite (Auto Antenna Tracker w/ Trace OSD)

http://www.skylarkfpv.com/store/inde...&product_id=71

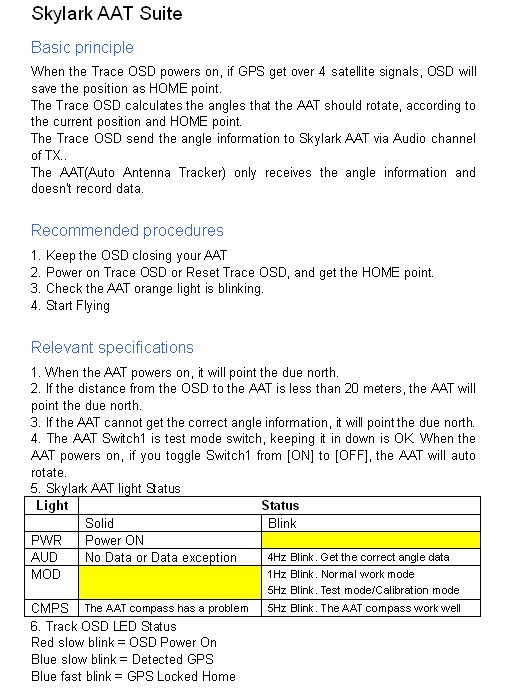

The new Skylark AAT Suite manual has been updated to Skylark website.
Skylark website-> Support-> Skylark AAT Suite [Download]
Thanks for all the people who understand and support us.


View this video on YouTube

Features
No tools needed for assembly
Tracks 360º horizontally and 90º vertically
Include compass
Free firmware upgrade

Features
Easy to install and easy to use.
5V/12V filtered power for TX/Camera
PAL/NTSC compatible
60A current sensor RSSI
Auto detected | Auto "Setting Home"
With barometer
Skylark 10Hz GPS
Support Skylark Auto Antenna Tracker
Free firmware upgrade

http://www.skylarkfpv.com/store/inde...&product_id=74

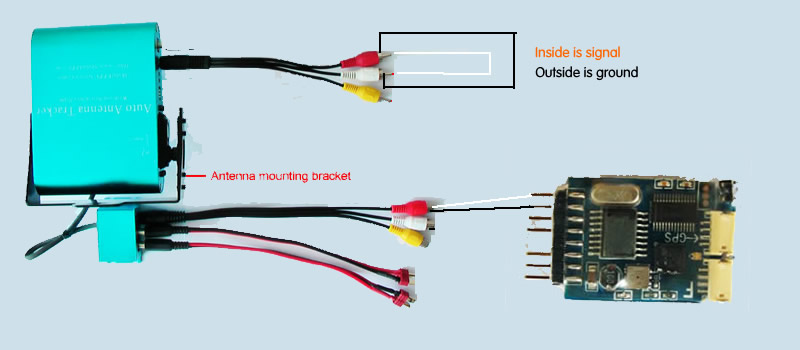

AAT convert module for other brand OSD

http://www.skylarkfpv.com/store/index.php?route=product/product&path=35&product_id=84
AAT convert module for other brand OSD

It's very easy, Plug And Play.

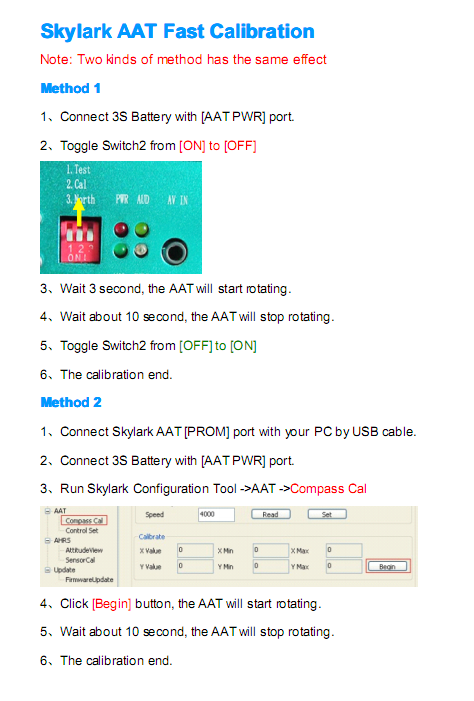

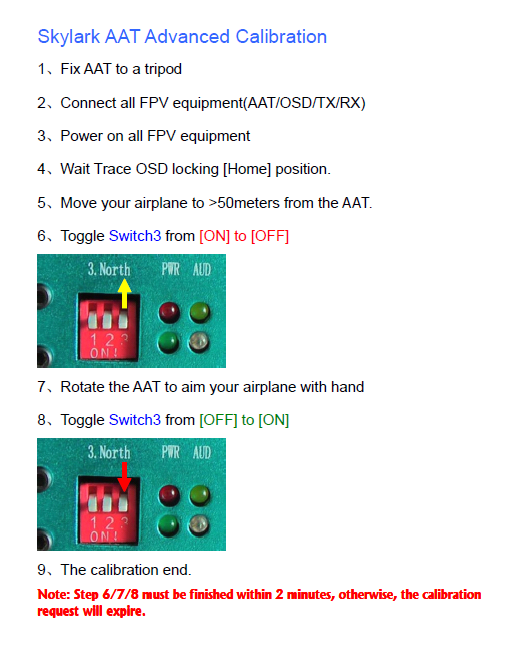

If unsatisfactory results --- then do advanced calibration


:



:

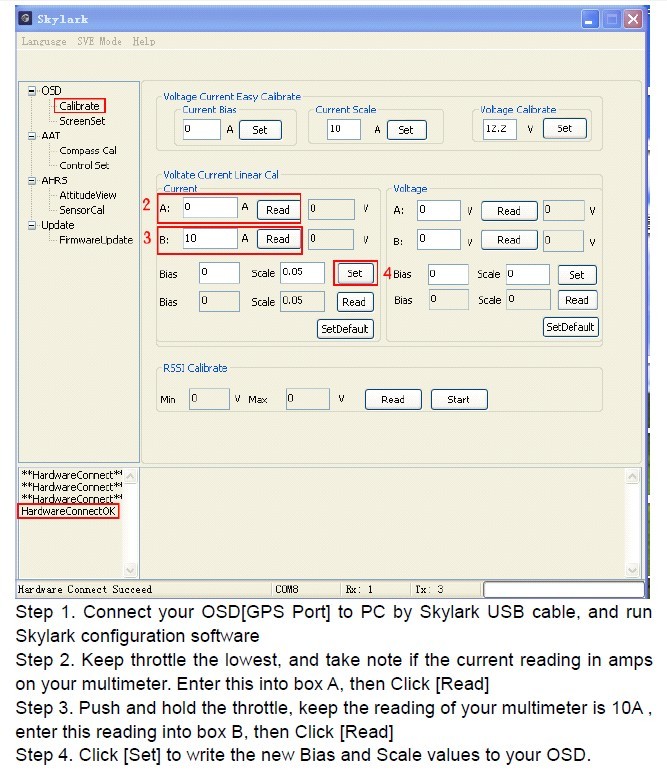

CALIBRATING THE SKYLARK OSD CURRENT SENSOR

http://www.rcflighttest.com/home/201...urrent-sensor/

[hugy]

Does this thing have all the bugs out or do you still need to kill them like on the skylark osd?

[Tuppertn]

Does this thing have all the bugs out or do you still need to kill them like on the skylark osd?

I have the Skylark Tiny OSD and it works perfectly. I'm using the old firmware version with NTSC and I have none of the problems Sentry described in his review. I think Sentry's review sample must have had something else wrong with it. Based on my admittedly limited experience so far his problems are not universal to the product as a whole.

kendall

[SENTRY]

I will be testing this soon. I actually had a faulty board on my OSD - there are other pilots who had none of the issues I had on their OSD. Furthermore, most of the "issues" I had were responded to quickly - and my requested features were added quickly as well.

I have not seen a single OSD or tracker that hasn't had firmware upgrades. As an I.T pro I can tell you that the PRODUCTION network is what tests code - not the development network. Just as the MFD has seen firmware updates, so has any other OSD and AT out there. I do not expect it to be perfect out of the box - but I do suspect that Skylark will respond quickly to updates/upgrades and expanded feature sets.

[skylark]

Skylark AAT Test Tool[Download]

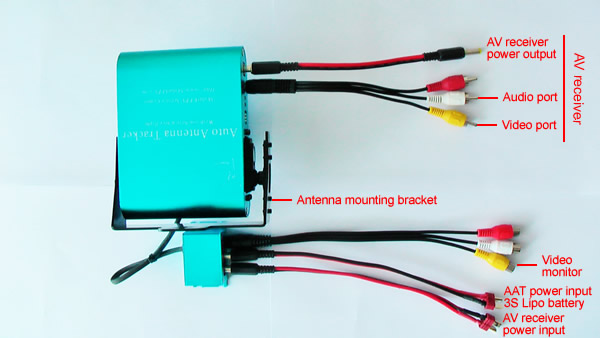

1、Connect your FPV equipment and power on AAT
OSD -> TX ---- RX->Skylark AAT
2、Connect PC with Trace OSD by USB cable
3、Run Skylark AAT.exe
4、Select the correct com port what USB cable use, and click the 'Connect' button.
5、Click 'Reset OSD' button，then waiting for Trace OSD get 'Home' position
6、Click 'Tracking' button
7、Check out the status of your AAT
Note: Please keep AAT [AV PWR] and [AAT PWR] all have power on.


A way to test the AAT and Trace OSD without Video RX/TX

[skylark]

[skylark]

[SENTRY]

Great!!

[Derek_S]

Oh hai,

I am helping Sentry assemble this baby for some initial testing!
First we need a tripod from goodwill. Cheap there...

I use the anti-slip mat like you use in cabinets behind the antenna so it wont slip easily.

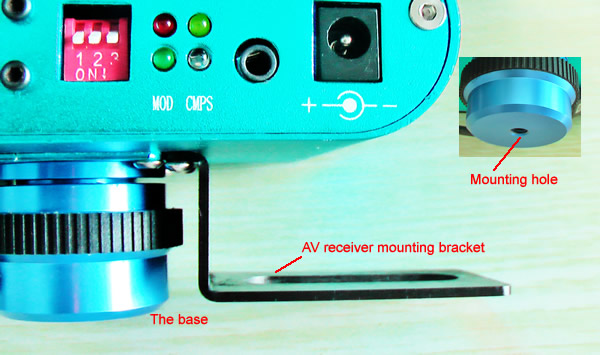

An aluminum bracket for the non-rotating component mounting.

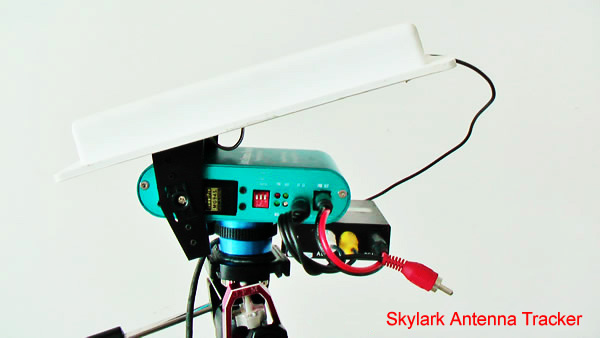

Pretty much ready.


This thing is pretty nice. It sets up easily, and seems to come with most everything. I only need to make a lawmate compatible cable, the one that came with it uses AV connectors instead of 3.5mm rca style. It also appears to support stereo audio operation. (AKA mono with telemetry)

[SENTRY]

We will have this tested this week if we have good weather --- STAY TUNED!!!!
