Tiny OSD III shows only GPS SIGNAL WEAK

[Japanx]

Hello,

Thanks but I only had osd board and gps...I have already sent it back. The GPS is probably defect. I will let you know when I know.

Please dont forget to update... I'm waiting your response to decide for skylark equipment

[kamelkungen]

Hi,

I will let you know ASAP!

[kamelkungen]

Hello again,

The supplier replaced the GPS unit. It was faulty. according to them.
I will come back when I have received the unit.

[kamelkungen]

Hello again,

The supplier replaced the GPS unit. It was faulty. according to them.
I will come back when I have received the unit.

I got the new gps unit today. Installed and it works very good. It took 3 min to find satellites. Very nice!

A broken gps unit at arrival was the main core to this problem. I'm very satisfied now!

[SENTRY]

It should take much less than that from now on. Less than 20 secs.

[kamelkungen]

It should take much less than that from now on. Less than 20 secs.

Yes...hot start is less than 20 sec. Very nice.

[Danub]

Skylark I have a Tiny III that is showing an occasional weak GPS.
I am using 1.2. . . . It is separated from the vtx by 3 feet/1meter. I swapped in your gps to the exact same position as a ls20031 from RMRC.

The gps is feeding the TinyIII and my AAT (MFD)

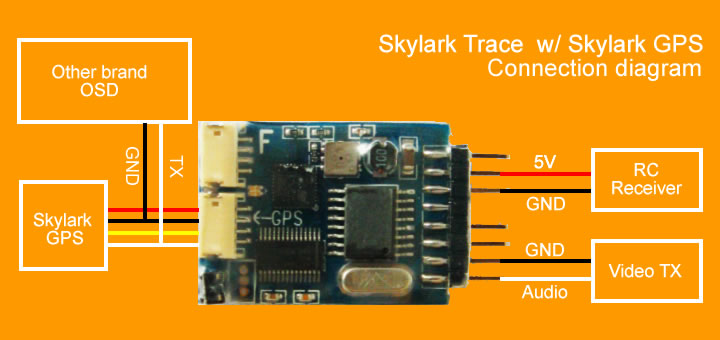

I wired everything like this this diagram:


Also when while flying my AAT will beep sometimes indicating loss of gps. . . when the weak gps signal is up on the screen?
Check it out:

View this video on YouTube

[skylark]

The problem come from your video TX or GPS
Please try other video channel to check if the video TX interfere with GPS.

[Danub]

The problem come from your video TX or GPS
Please try other video channel to check if the video TX interfere with GPS.

Today I flew on 2.4 and had the same issue. . . at one time in the flight it said GPS not detected??
I am going to try to use my old GPSand wire everything as the 1st diagram. . . see what happens

[SENTRY]

Is this during straight and level flight or vertical climbs/dives?
